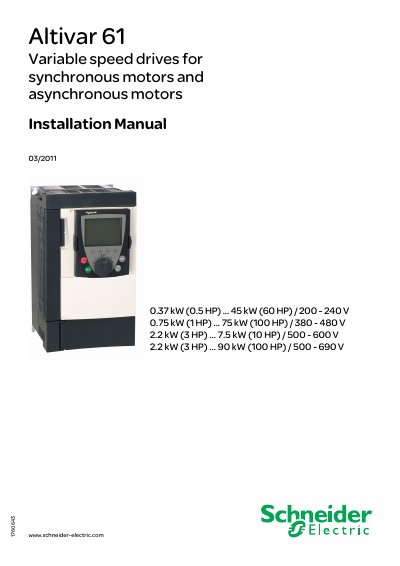

This document is an installation manual for Schneider Electric Altivar 61 variable speed drives. The drives are suitable for synchronous motors and asynchronous motors, with power ratings ranging from 0.37 kW to 90 kW and voltage ratings ranging from 200 V to 690 V. The document provides steps for setting up the drive, preliminary recommendations, drive ratings, dimensions and weights, and mounting instructions.
This manual covers important safety information, handling, and preparation steps required before installing or servicing the Altivar 61 variable speed drive. It emphasizes qualified personnel, electrical shock hazards, and proper discharge of DC bus capacitors.
The guide details the installation process, including mounting options, wiring of power and control terminals, optional cards, EMC plates, and connection diagrams. It also provides recommendations for cable shielding, grounding, and electromagnetic compatibility to ensure reliable operation.
| Supply voltage (single‑phase) | 200 … 240 V 50/60 Hz |
|---|---|
| Supply voltage (three‑phase) | 380 … 480 V 50/60 Hz |
Shielded cables with shielding connected to ground at both ends must be used for the motor cables.
Mount the drive according to the instructions in the manual, ensuring proper temperature conditions and using the provided mounting provisions.
