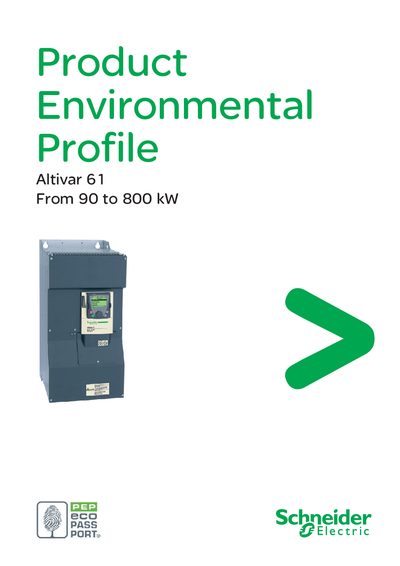

The product is the Altivar 61 series, which is primarily intended for the control and variation of the rotational speed of an asynchronous or synchronous electric motor. The rated power is 90-800 kW and it is suitable for 480 V and 690 V 3-phase supplies.
The Altivar 61 range, covering 90 kW to 800 kW and 480‑690 V three‑phase supplies, is evaluated for its environmental performance. The profile presents constituent material composition, manufacturing processes, distribution packaging, utilization power consumption and end‑of‑life recycling potential.
Key findings show a product weight of 114 kg (excluding packaging), internal power consumption of 3 191 W for the 160 kW model, and a recycling potential rate of 78 %. The range complies with the RoHS directive and follows ISO‑14001 certified manufacturing and ISO‑14040 life‑cycle assessment standards.
| Voltage rating | 480 and 690 V 3‑phase |
|---|---|
| Product weight (excluding packaging) | 114 kg |
| Internal power consumption (160 kW model) | 3 191 W |
| Recycling potential rate | 78 % |
| RoHS compliance | Yes |
The 160 kW, 480 V Altivar 61 weighs 114 kg excluding packaging.
Yes, the Altivar 61 range is designed in conformity with the RoHS directive.
The product has a recycling potential rate of 78 %.
