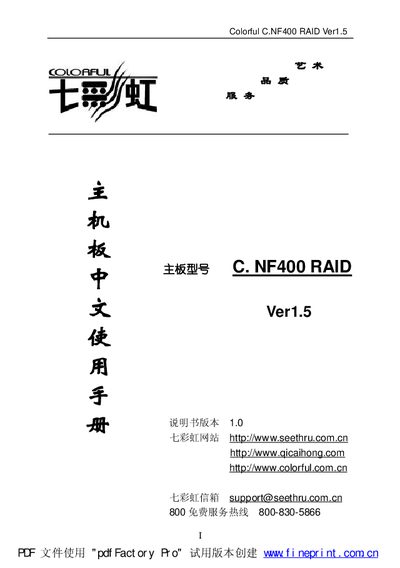

Colorful C.NF400 RAID Ver1.5 motherboard manual, introduces the motherboard's specifications, interfaces, jumper settings, hardware installation, driver installation and BIOS settings.
This manual introduces the Colorful C.NF400 RAID Ver1.5 ATX motherboard, detailing its supported AMD Athlon XP, Sempron and Duron processors, Nvidia nForce2 SPP + MCP‑RAID chipset, and dual‑channel DDR400 memory up to 2 GB. It also describes the AGP 8X interface, IDE/SATA ports, USB ports, and built‑in AC'97 audio.
The document covers hardware installation steps, BIOS and CMOS settings, power‑management features, and driver installation procedures, along with troubleshooting tips and technical support contact information. This manual is written in Chinese.
| Supported Processors | AMD Athlon XP, Sempron and Duron (Socket 462) |
|---|---|
| Chipset | Nvidia nForce2 SPP (Crush18D) + MCP‑RAID set |
| Memory Slots | 2 × 184‑pin DDR slots, dual‑channel, up to 2 GB DDR400 |
| Expansion Slots | 5 PCI slots, 1 AGP slot |
| Storage Interfaces | 2 IDE, 2 SATA (RAID 0/1/0+1) |
| USB Ports | 8 USB 2.0 ports (4 built‑in, 4 via cable) |
| Form Factor | ATX |
| BIOS | Award BIOS with 4 MB Flash EEPROM |
It supports AMD Athlon XP, Sempron and Duron processors for the 462‑pin Socket A.
The board provides eight USB 2.0 ports, four of which are built‑in and four require a cable connection.
It has two 184‑pin DDR slots supporting dual‑channel DDR400 memory up to a total of 2 GB.
