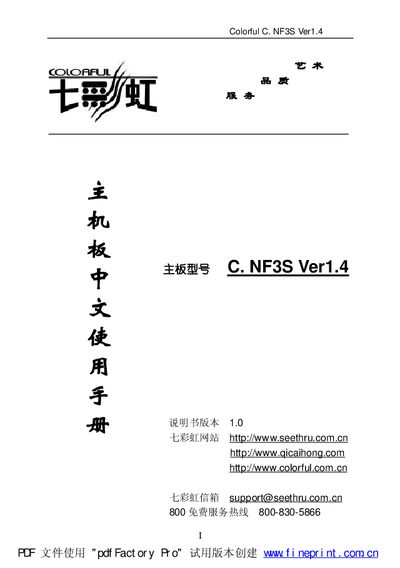

Colorful C. NF3S Ver1.4 Motherboard Manual, introduces the specifications, functions and usage methods of the main board.
This manual introduces the Colorful C. NF3S Ver1.4 ATX motherboard, its supported AMD Socket 754 CPUs, NVIDIA nForce3 250 chipset, and the range of interfaces and expansion options it offers. It also lists the standard accessories included with the board.
The document covers detailed specifications, jump‑wire settings, connector descriptions, hardware installation procedures, driver installation, BIOS configuration (standard, advanced, and RAID settings), power‑management options, and troubleshooting tips. It ends with a glossary of technical abbreviations and contact information for technical support. This manual is written in Chinese.
| Supported Processors | AMD Athlon 64, AMD Sempron (Socket 754) |
|---|---|
| Chipset | NVIDIA nForce3 250 |
| Memory Slots | 2 × 184‑pin DDR2.5 V DIMM slots |
| Maximum Memory Capacity | 2 GB DDR200/266/333/400 |
| IDE Interfaces | 2 IDE connectors with RAID 0/1/JBOD |
| USB Ports | 8 USB 2.0 ports (4 require a cable) |
| Expansion Slots | 1 AGP 8X slot, 5 PCI slots |
It supports AMD Athlon 64 and AMD Sempron CPUs that use the Socket 754 package.
The board provides two 184‑pin DDR slots that accept DDR200‑400 memory up to a total of 2 GB.
It includes one AGP 8X slot and five PCI slots for additional cards.
Eight USB 2.0 ports are available, although four of them need a cable to be connected.
