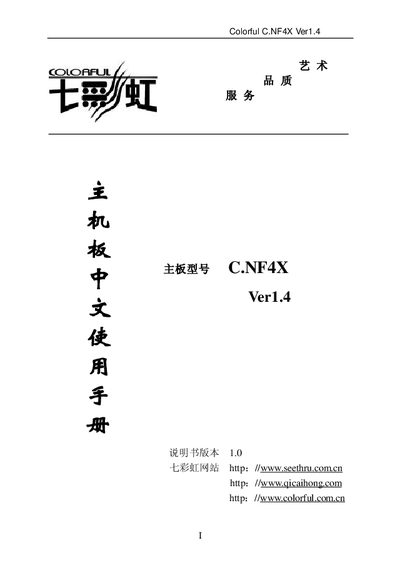

The document is a user manual for Colorful C.NF4X Ver1.4 I motherboard, which describes the specifications, processor, chipset, memory, expansion slots, and other features of the motherboard.
This manual introduces the Colorful C.NF4X Ver1.4 ATX motherboard, its supported AMD Socket 754 CPUs, DDR memory types and NVIDIA nForce4‑4X chipset. It details the board layout, connector locations, jumper settings and safety information.
The document also covers hardware installation, driver installation, BIOS configuration, RAID setup, power‑management options and BIOS update procedures, plus a glossary of technical terms and customer support contacts. This manual is written in Chinese.
| Chipset | NVIDIA nForce4‑4X |
|---|---|
| Memory Type | DDR200/266/333/400 SDRAM (2.5 V) |
| Maximum Memory | 2 GB total (2 × 184‑pin DIMM slots) |
| Expansion Slots | 3 × PCI, 1 × PCI‑X16, 2 × PCI‑X1 |
| SATA Ports | 4 SATA (RAID 0/1/JBOD) |
| IDE Ports | 2 × IDE |
| USB Ports | 8 × USB 2.0 (4 need external cable) |
It accepts DDR200/266/333/400 SDRAM (2.5 V) in two 184‑pin DIMM slots, up to a total of 2 GB.
There are four SATA ports that support RAID 0, RAID 1 and JBOD configurations.
