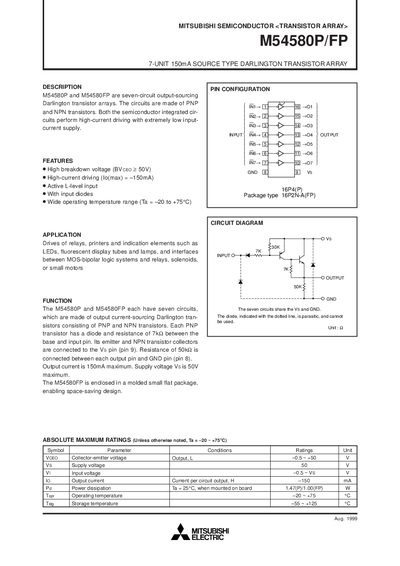

M54580P and M54580FP are 7-channel output current-sourcing Darlington transistor arrays. The transistor arrays are made up of PNP and NPN transistors. M54580P and M54580FP have extremely low input current consumption and can drive large currents.
The M54580P and M54580FP are seven‑circuit output‑sourcing Darlington transistor arrays made of PNP and NPN transistors. They provide high‑current driving with very low input current and feature active‑level inputs, built‑in diodes, and a wide operating temperature range.
Typical applications include driving relays, printers, LEDs, fluorescent display tubes, lamps, and interfacing MOS‑bipolar logic to relays, solenoids, or small motors. The FP version is supplied in a low‑profile molded package for space‑saving designs.
| Maximum output current per circuit (I_O) | -150 mA |
|---|---|
| Supply voltage (Vs) rating | 50 V |
| Input voltage range | 0.5 V to Vs |
| Operating temperature range | -20 °C to +75 °C |
| Storage temperature range | -55 °C to +125 °C |
| Package type | 16P2N-A(FP) |
The maximum output current per circuit is -150 mA.
The device can operate with a supply voltage up to 50 V.
It operates from –20 °C to +75 °C.
