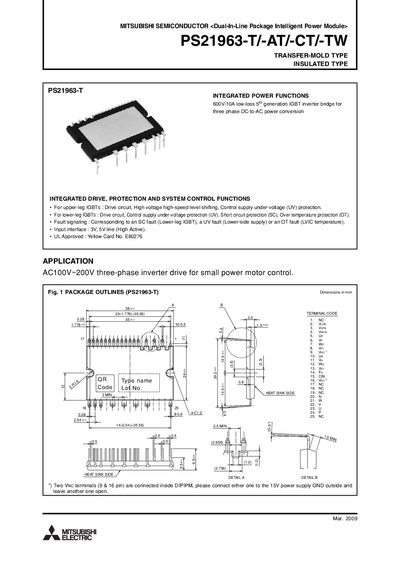

PS21963-T/-AT/-CT/-TW is a 600V/10A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. It is suitable for AC100V~200V three-phase inverter drive for small power motor control.
This manual describes the Mitsubishi PS21963 series Dual‑In‑Line Package Intelligent Power Module (IPM). It covers package outlines, electrical characteristics, protection functions, recommended operating conditions, and mechanical mounting details for the T, AT, CT, and TW variants.
The document includes block diagrams, timing charts, and example application circuits, along with guidance on wiring, component selection, and thermal management to ensure reliable operation in three‑phase inverter drives.
| Supply voltage (P‑N) | 450 V (min) |
|---|---|
| Collector‑emitter voltage (VCES) | 600 V |
| IGBT collector current (Ic) | 10 A |
| Collector dissipation (Pc) | 27 W per chip |
| Control supply voltage (Vo) | 20 V |
| Junction temperature rating (Tj) | 125 °C (max) |
The module provides short‑circuit protection, under‑voltage protection for both upper and lower sides, over‑temperature protection, and fault signaling for SC, UV, or OT faults.
Each input includes a built‑in 3.3 kΩ (minimum) pull‑down resistor.
The collector‑emitter voltage rating is 600 V.
