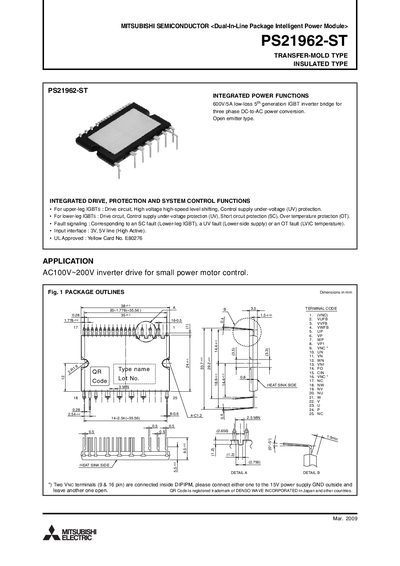

PS21962-ST is a 600V/5A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. Open emitter type. APPLICATION AC100V~200V inverter drive for small power motor control.
The Mitsubishi PS21962-ST is a dual‑in‑line package (DIP) intelligent power module that integrates drive, protection, and system control functions for three‑phase DC‑to‑AC inverter applications. It features a 600 V/5 A low‑loss IGBT bridge with open‑emitter type devices and includes built‑in short‑circuit, under‑voltage, and over‑temperature protection.
The document provides detailed electrical, thermal, and mechanical ratings, recommended operating conditions, wiring guidelines, and timing charts for the module's protective functions. It also includes example application circuits and recommended component values for reliable integration.
| Collector‑emitter voltage (VCES) | 600 V |
|---|---|
| Weight | 10 g |
