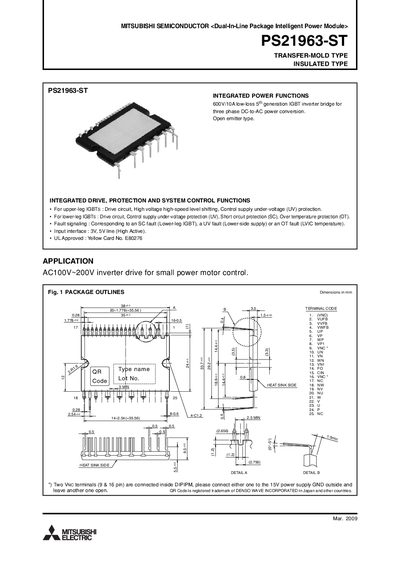

Mitsubishi Semiconductor PS21963-ST is a 600V/10A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. It is an open emitter type and has integrated drive, protection and system control functions.
The Mitsubishi PS21963-ST is a dual‑in‑line package intelligent power module designed for three‑phase DC‑to‑AC conversion. It integrates drive, protection and system control functions for both upper‑leg and lower‑leg IGBTs, including under‑voltage, short‑circuit and over‑temperature protection.
The manual provides maximum ratings, thermal and electrical characteristics, mechanical data, recommended operating conditions, internal circuit diagrams, timing charts for protective functions, wiring guidelines, and a typical application circuit.
| Collector‑emitter voltage (VCES) | 600 V |
|---|---|
| Continuous collector current (Ic) | 10 A |
The module can handle a continuous collector current of 10 A per IGBT at 25 °C.
