Agilent 6000 is a high-performance oscilloscope with multiple frequency and sampling rate options. It supports various communication interfaces and protocols, and has large storage capacity and high-resolution display.

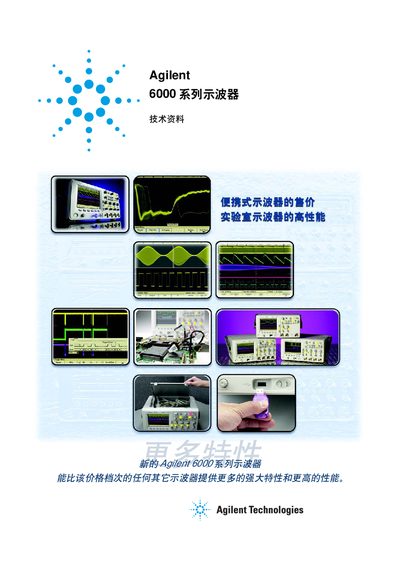

This manual introduces the Agilent 6000 series oscilloscopes, covering both DSO (digital storage) and MSO (mixed‑signal) variants. It details model options such as 300 MHz, 500 MHz and 1 GHz bandwidth devices, and explains the unique 2+16 or 4+16 channel configurations.
Key features include MegaZoom II deep memory, up to 100 000 waveforms per second update rate, XGA (1024 × 768) color display, and extensive connectivity (USB 2.0, LAN, GPIB, HDMI). The document also lists available accessories and warranty information. This manual is written in Chinese.
| Bandwidth | 300 MHz, 500 MHz, 1 GHz |
|---|---|
| Channel Configuration | 2+16 or 4+16 mixed‑signal channels (MSO) / 2 or 4 channels (DSO) |
| Memory Depth | 1 Mpts (MegaZoom II) |
| Waveform Update Rate | 100 000 waveforms/second |
| Display Resolution | 1024 × 768 (XGA) color |
All models include a standard one‑year warranty, with optional extensions to three or five years.
A range of probes and accessories are listed, such as the 10070C 1:1 probe, 10073C 10:1 500 MHz probe, and various AutoProbe‑compatible probes.
