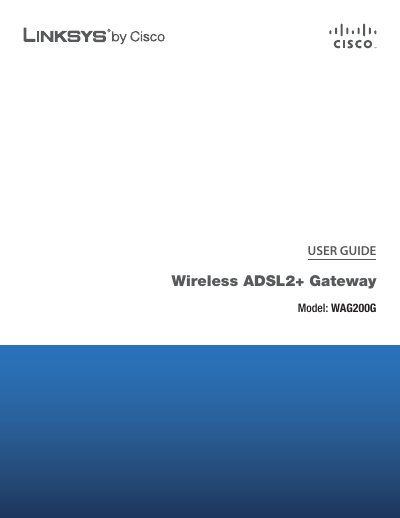

This document is a user guide for the wireless ADSL2+ gateway. It introduces the features and characteristics of the gateway and provides instructions on how to install and use it.
This guide provides an overview of the Linksys WAG200G Wireless ADSL2+ Gateway, describing its hardware features, LEDs, ports and basic operation. It also explains how to install the device, connect it to your DSL line and wired computers, and run the Setup CD-ROM.
The manual covers wireless security best practices, advanced configuration options via the web‑based utility, detailed specifications, warranty information and regulatory notices, plus a troubleshooting appendix for common connection problems.
| Standards | IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3, g.992.1, g.992.2, g.992.3, g.992.5, T1.413i2, U‑R2 Annex B |
|---|---|
| Ports | Line (DSL), Ethernet (1‑4), Power |
| Antennas | 1 Non‑Detachable |
| Transmit Power | 18 dBm |
| Security | WPA2, WPA; 128‑, 64‑bit WEP with passphrase |
| Dimensions | 140 × 140 × 27 mm |
| Weight | 350 g |
| Power Supply | 12 VDC, 1 A |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
Press and hold the Reset button for about five seconds, or use the Administration > Factory Defaults screen in the web‑based utility.
Enter 192.168.1.1 in a web browser to reach the gateway’s configuration page.
The device has four Ethernet ports, labeled 1‑4, for wired connections.
