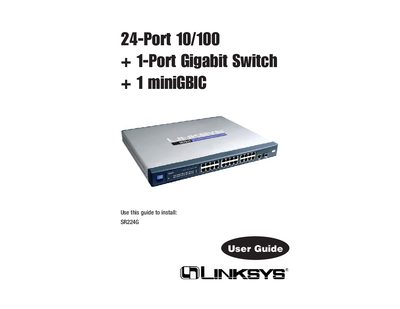

This guide describes how to install the SR224G 24-Port 10/100 + 1-Port Gigabit Switch + 1 miniGBIC.
The SR224G is a rack‑mountable 24‑port 10/100 Ethernet switch with an additional Gigabit port and a mini‑GBIC slot for fiber expansion. It offers non‑blocking, wire‑speed switching, auto‑MDI/MDI‑X detection, and advanced features such as broadcast storm suppression and port security.
This manual covers safety and FCC information, hardware overview, LED indicators, port descriptions, step‑by‑step installation (including rack‑mounting or floor placement), cable connections, configuration basics, warranty details, and contact information for technical support.
| Model Number | SR224G |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab |
| Ports | 24 RJ‑45 10/100/1000, 1 Gigabit 10/100/1000, 1 mini‑GBIC |
| Cabling Type | Cat5, Multi‑Mode fiber 1310 nm and 850 nm |
| Power | 110‑120 V AC, 30 W |
| Dimensions | 17.01" x 1.75" x 13.74" (432 mm x 44.5 mm x 349 mm) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
It provides 24 RJ‑45 10/100/1000 ports, one additional 10/100/1000 Gigabit port, and one mini‑GBIC port.
The switch operates on 110‑120 V AC and consumes up to 30 W.
It can be placed on its four rubber feet or mounted in a standard 1U rack using the four mounting holes on each side.
