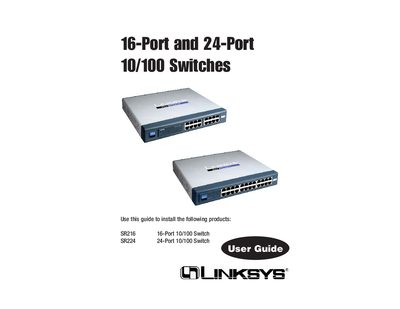

This guide describes how to install the following products: SR216 16-Port 10/100 Switch SR224 24-Port 10/100 Switch
This manual provides step‑by‑step instructions for installing, connecting, and configuring the Linksys SR216 (16‑port) and SR224 (24‑port) 10/100 Ethernet switches. It covers front‑panel LEDs, power connections, mounting options, and basic networking concepts.
The guide also includes technical specifications, environmental ratings, warranty information, and contact details for Linksys technical support.
| Standards | IEEE 802.3, IEEE 802.3u |
|---|---|
| Ports (SR216) | 16 RJ‑45 10/100 |
| Ports (SR224) | 24 RJ‑45 10/100 |
| Cabling Type | Category 5 Ethernet or Better |
| LEDs (SR216) | System, 1 through 16 |
| LEDs (SR224) | System, 1 through 24 |
| Security Feature | Security Slot |
| Dimensions | 11.00" x 1.75" x 9.45" (279.4 mm × 44.5 mm × 240 mm) |
| Unit Weight | 3.3 lb (1.5 kg) |
| Power (SR216) | Input 110 V AC, Output 16.5 W |
| Power (SR224) | Input 100‑240 V AC, Output 12.5 W |
| Certifications | FCC Class B, CE |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 20 % to 95 % non‑condensing |
| Storage Humidity | 5 % to 90 % non‑condensing |
The SR216 model provides 16 RJ‑45 10/100 Ethernet ports.
You can place the switch on its rubber feet, rack‑mount it (1U high), or wall‑mount it using the built‑in slots.
Linksys offers a limited lifetime warranty covering defects in materials and workmanship.
The SR224 accepts 100‑240 V AC input and consumes 12.5 W of power.
