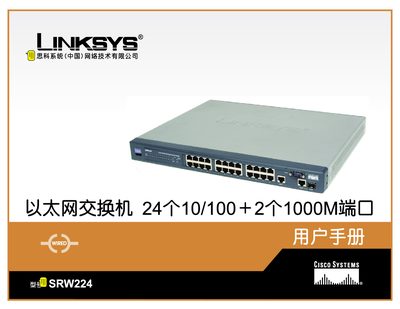

Linksys SRW224 Switch User Manual

The Xiaomi 10 is a flagship smartphone released by Xiaomi on August 12, 2020. It is equipped with the Qualcomm Snapdragon 865 processor and is the first 5G Snapdragon 865 smartphone. It supports 120Hz high refresh rate and multi-function NFC.

Brand: Linksys
Category: Network Switches
Document type: User Manual
Language: Chinese
Pages: 47
File format: PDF
File size: 14.7 MB
Published: 20 March, 2012
Updated: 30 September, 2023
Model: SRW224
MD5 checksum: 1DC3438EBE8AF99E7E9BEFAB4245B903
PDF: Linksys SRW224 Switch User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring the Linksys SRW224 switch. It includes hardware installation, serial console setup, and web‑based management.

The document also lists technical specifications, warranty information, and FCC compliance details, helping users safely deploy the switch in a network environment. This manual is written in Chinese.

What's inside

Introduction
Physical Description
Installation
Serial Port Configuration
Web Configuration
Fast Ethernet and Gigabit Ethernet
VLAN and Trunk Settings
Appendix A – Fast Ethernet
Appendix B – Gigabit Ethernet
Appendix C – Windows Support

Specifications

10/100 Ethernet ports	24
Gigabit Ethernet ports	2

Frequently asked questions

How many Ethernet ports does the SRW224 have?

The SRW224 provides 24 ten‑megabit/fast‑Ethernet ports and 2 gigabit Ethernet ports.

What management interfaces are available?

The switch supports both serial console configuration and web configuration for managing VLANs and trunks.

Download PDF (14.7 MB)
