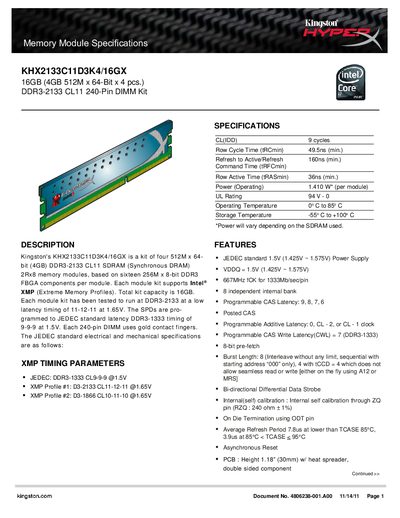

Kingston's KHX2133C11D3K4/16GX is a kit of four 512M x 64-bit (4GB) DDR3-2133 CL11 SDRAM (Synchronous DRAM) 2Rx8 memory modules, based on sixteen 256M x 8-bit DDR3 FBGA components per module. Each module kit supports Intel® XMP (Extreme Memory Profiles). Total kit capacity is 16GB. Each module kit has been tested to run at DDR3-2133 at a low latency timing of 11-12-11 at 1.65V. The SPDs are pro- grammed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows: Document No. 4806238-001.A00 11/14/11 Page 1...
The Kingston KHX2133C11D3K4/16GX is a 16 GB DDR3‑2133 memory kit composed of four 4 GB 240‑pin DIMM modules, intended for desktop computers.
The modules operate at a nominal 1.5 V (1.425 V – 1.575 V), have a CL11 latency, consume about 1.41 W each, and are rated for 0 °C to 85 °C. Physical dimensions and a heat‑spreader are provided in the data sheet.
| Total Capacity | 16 GB (four 4 GB modules) |
|---|---|
| Memory Type | DDR3‑2133 CL11 240‑Pin DIMM |
| Operating Voltage | 1.5 V (1.425 V – 1.575 V) |
| CAS Latency | CL9 (programmable to 9, 8, 7, 6) |
| Power Consumption | 1.410 W per module (operating) |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 1.18 in (30 mm) with heat spreader |
| Module Dimensions | 133.35 mm × 30.00 mm × 18.80 mm |
The kit provides a total of 16 GB, made up of four 4 GB modules.
They use a JEDEC standard 1.5 V supply, with a range of 1.425 V to 1.575 V.
Each module consumes about 1.410 W during operation.
Operating temperature is from 0 °C up to 85 °C.
