KHX1333C9D3B1K2/8G 8GB (4GB 512M x 64-Bit x 2 pcs.) DDR3-1333 CL9 240-Pin DIMM Kit is a memory stick from Kingston. It uses 2Rx8 memory modules and has a total capacity of 8GB. The product supports JEDEC standard latency DDR3-1333 timing and has a power supply voltage of 1.5V.
The KHX1333C9D3B1K2/8G kit consists of two 4 GB DDR3-1333 CL9 240‑pin DIMM modules, providing a total capacity of 8 GB. Each module uses gold‑contact fingers and complies with JEDEC standards.

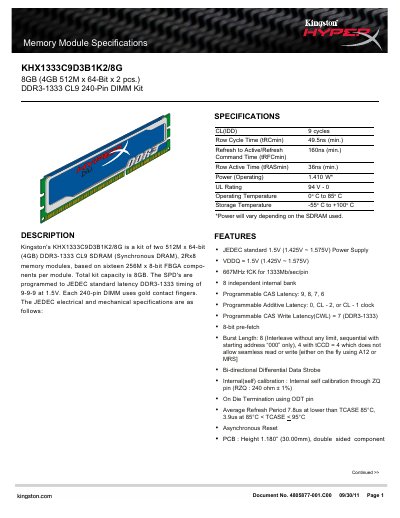

The document lists detailed specifications such as voltage, timing parameters, power consumption, temperature ranges, and physical dimensions, along with feature highlights like internal self‑calibration, ODT, and programmable latencies.
| Total Capacity | 8 GB |
|---|---|
| Voltage | 1.5 V |
| CAS Latency | 9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns (min.) |
| Refresh to Active/Refresh | 160 ns (min.) |
| Operating Power | 1.410 W |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
The kit provides a total capacity of 8 GB, made up of two 4 GB modules.
It operates at a JEDEC standard voltage of 1.5 V and uses a timing of 9‑9‑9 (CAS latency 9).
The modules are rated for operation from 0 °C to 85 °C and storage from -55 °C to +100 °C.
Features include internal self‑calibration, on‑die termination (ODT), programmable CAS latency, 8‑bit pre‑fetch, and bi‑directional differential data strobe.
