Kingston's KHX1600C9D3K4/8GX is a 8GB DDR3-1600 memory kit, supports Intel XMP, features gold fingers, and has a working voltage of 1.5V with a runtime timing of 9-9-9-27.
The Kingston KHX1600C9D3K4/8GX is an 8 GB kit composed of four 2 GB DDR3‑1600 CL9 240‑pin DIMM modules. Each module uses JEDEC‑standard 1.5 V (1.425 V ~ 1.575 V) power and features gold contacts, on‑die termination, and internal self‑calibration.

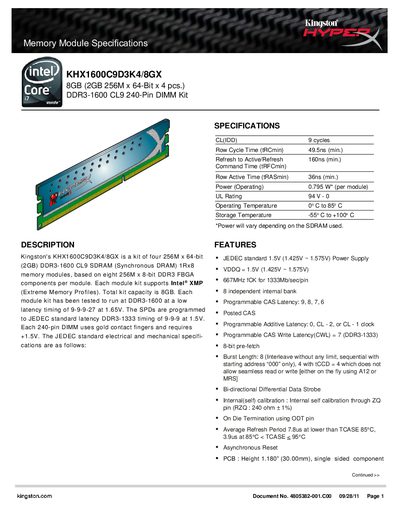

The datasheet lists detailed electrical and mechanical specifications, including timing parameters, power consumption, temperature ranges, and physical dimensions. Compatibility notes mention support for Intel® XMP profiles and advise against over‑clocking beyond the published specifications.
| Capacity | 8 GB (4 × 2 GB) |
|---|---|
| Type | DDR3‑1600 CL9 240‑Pin DIMM |
| CAS Latency (CL) | 9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns (min) |
| Row Active Time (tRASmin) | 36 ns (min) |
| Power (Operating) | 0.795 W per module |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Module Height | 1.180 in (30.00 mm) |
The kit provides a total of 8 GB, made up of four 2 GB modules.
It operates from 0 °C up to 85 °C.
Each module consumes about 0.795 W of power.
Yes, each module kit supports Intel® XMP.
