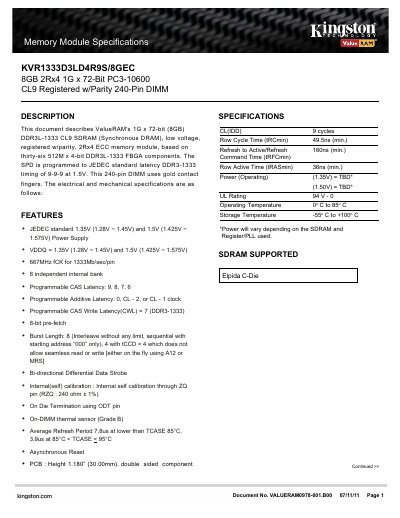

This document describes the features and characteristics of ValueRAM's 1G x 72-bit (8GB) DDR3L-1333 CL9 SDRAM (Synchronous DRAM), low voltage, registered w/parity, 2Rx4 ECC memory module. It is based on thirty-six 512M x 4-bit DDR3L-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
This document provides the technical description and specifications for the ValueRAM KVR1333D3LD4R9S/8GEC 8 GB DDR3L‑1333 registered memory module with parity. It outlines electrical, mechanical, and environmental parameters required for system integration.
Key features include JEDEC‑standard voltage operation at 1.35 V and 1.5 V, programmable CAS latency (9‑6), internal self‑calibration, on‑DIMM thermal sensor, and bi‑directional differential data strobe. The module is a 2Rx4, 1 G × 72‑bit configuration with a 240‑pin gold‑finger DIMM layout.
| Capacity | 8 GB |
|---|---|
| Speed | DDR3L‑1333 (1333 MT/s) |
| Voltage | 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V) |
| CAS Latency | Programmable 9, 8, 7, 6 (default 9) |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
The module operates at 1.35 V (1.28 V ~ 1.45 V) or 1.5 V (1.425 V ~ 1.575 V).
CAS latency can be programmed to 9, 8, 7, or 6 cycles.
The module operates from 0 °C up to 85 °C.
It is an 8 GB module organized as 2Rx4, 1 G × 72‑bit.
