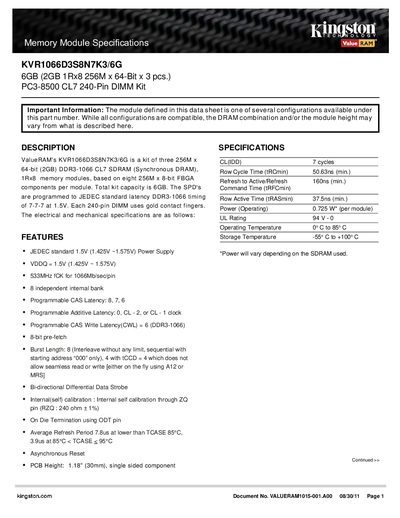

The document describes ValueRAM's KVR1066D3S8N7K3/6G kit, which includes three 2GB DDR3-1066 CL7 SDRAM memory modules, totaling 6GB. The modules are programmed with JEDEC standard timing and voltage requirements. The document also lists the electrical and mechanical specifications of the modules.
The KVR1066D3S8N7K3/6G kit consists of three 2 GB DDR3‑1066 CL7 240‑pin DIMM modules (1Rx8, 256M × 64‑bit). Each module operates at a standard JEDEC voltage of 1.5 V (1.425 V ~ 1.575 V) and consumes about 0.725 W of power.
Key features include a 533 MHz clock, programmable CAS latency (6, 7, 8), on‑die termination, internal self‑calibration, and a PCB height of 1.18 in (30 mm). The modules are rated for operating temperatures from 0 °C to 85 °C and storage temperatures from –55 °C to +100 °C.
| Total Capacity | 6 GB (3 × 2 GB modules) |
|---|---|
| Form Factor | 240‑pin DIMM, PC3‑8500 CL7 |
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Power Consumption (per module) | 0.725 W |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Clock Frequency | 533 MHz (1066 Mb/s per pin) |
| Programmable CAS Latency | 6, 7, 8 |
| PCB Height | 1.18 in (30 mm) |
| Module Dimensions | 133.35 mm × 30.00 mm × 1.18 in |
The kit provides a total of 6 GB of memory, made up of three 2 GB modules.
It uses the JEDEC standard 1.5 V supply, with a tolerance of 1.425 V to 1.575 V.
The modules are rated for operation between 0 °C and 85 °C.
The PCB height is 1.18 in (30 mm).
