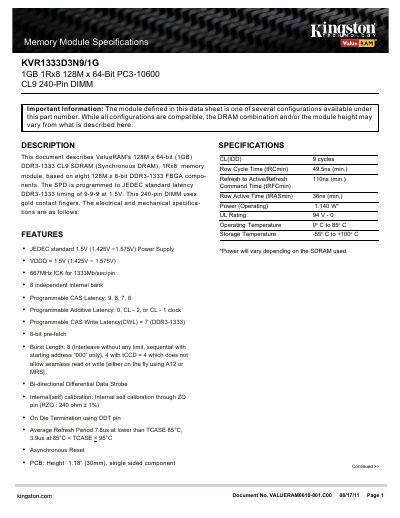

This is a ValueRAM's 1GB DDR3-1333 CL9 SDRAM (Synchronous Dynamic Random Access Memory), 1Rx8 memory module, based on eight 128M x 8-bit DDR3-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
The KVR1333D3N9/1G is a 1 GB (1Rx8) DDR3‑1333 CL9 memory module built on eight 128M × 8‑bit FBGA components. It conforms to JEDEC standards and uses a 240‑pin DIMM form factor with gold contact fingers.
The datasheet provides key electrical parameters such as 1.5 V supply, 667 MHz clock, programmable CAS latency (9‑6), and a typical operating power of 1.140 W. Mechanical details include a 1.18 in (30 mm) height and temperature ranges from 0 °C to 85 °C (operating) and –55 °C to +100 °C (storage).
| Capacity | 1 GB |
|---|---|
| Form factor | 240‑pin DIMM |
| Supply voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Clock frequency | 667 MHz |
| CAS latency (default) | CL9 |
| Operating power | 1.140 W |
| Operating temperature | 0 °C to 85 °C |
| Storage temperature | -55 °C to +100 °C |
| Module height | 1.18 in (30 mm) |
It operates at a JEDEC‑standard 1.5 V (range 1.425 V ~ 1.575 V).
The module supports programmable CAS latency values of 9, 8, 7, 6, with CL9 as the default.
Typical operating power is 1.140 W.
It operates from 0 °C to 85 °C and can be stored from –55 °C to +100 °C.
