Electrical and mechanical specifications for ValueRAM 512M x 64-bit 4GB (4096MB) DDR3-1066 CL7 SDRAM (Synchronous DRAM) memory module

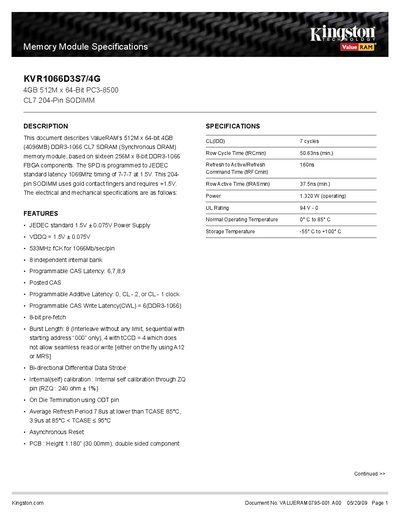

This document provides the technical specifications for Kingston's KVR1066D3S7/4G 4 GB DDR3‑1066 CL7 SODIMM memory module. It details the module’s capacity, speed, voltage, power consumption, and mechanical dimensions.
Key features include JEDEC‑standard 1.5 V operation, a normal operating temperature range of 0 °C to 85 °C, and various programmable latency options. Electrical characteristics such as refresh timing, on‑die termination, and self‑calibration are also listed.
| Capacity | 4 GB (512M × 64‑bit) |
|---|---|
| Memory Type | DDR3‑1066 SODIMM |
| CAS Latency | CL7 |
| Operating Voltage | +1.5 V |
| Power Consumption | 1.320 W (operating) |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 30.00 mm |
The module provides 4 GB of memory (512 M × 64‑bit).
It operates at a standard JEDEC 1.5 V supply.
The module can operate from 0 °C up to 85 °C.
The part number is KVR1066D3S7/4G.
