TL-WR743N 11N Technology 150Mbps Wireless Broadband Router is designed to meet the needs of small businesses, offices and home offices for wireless Internet access. It is based on the IEEE 802.11n draft 2.0 standard and can extend wireless network range, providing up to 150Mbps wireless transmission speeds.

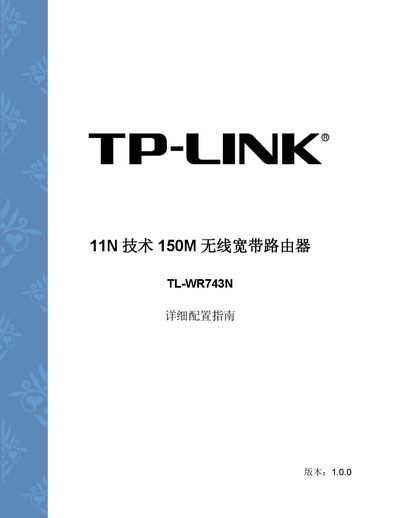

This guide provides a complete overview of the TL‑WR743N 11N‑technology 150 Mbps wireless broadband router, covering product introduction, main features, hardware description, and configuration procedures. It is intended for small‑business, office and home‑office users who need to set up and manage the device.
The manual details LAN/WAN port settings, DHCP server configuration, virtual server and DMZ setup, security options such as firewall, MAC filtering and DoS protection, as well as routing, QoS, dynamic DNS and system tools like firmware upgrade and factory reset. This manual is written in Chinese.
| Supported Standards | IEEE 802.11b/g/n, 802.1X, CSMA/CA, TCP/IP, DHCP, NAT, PPPoE |
|---|---|
| LAN Ports | 4 × 10/100 Mbps auto‑MDI/MDIX RJ45 |
| WAN Port | 1 × 10/100 Mbps auto‑MDI/MDIX RJ45 |
| Frequency Range | 2.4 – 2.4835 GHz |
| Maximum Wireless Rate | 150 Mbps (auto‑adaptive) |
| Antenna Type | Dual‑polarized omnidirectional |
| Dimensions (L×W×H) | 160 mm × 102 mm × 28 mm |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -40 °C – 70 °C |
Press and hold the RESET button while the router is powered on; after about five seconds, when the SYS LED changes from slow to fast flashing, release the button and the router will restart with factory settings.
The router provides four 10/100 Mbps auto‑MDI/MDIX RJ45 LAN ports.
It supports 64/128‑bit WEP, WPA‑PSK/WPA2‑PSK, and WPA‑Enterprise security mechanisms.
Yes, the router offers remote and web management with a full‑Chinese configuration interface and a setup wizard.
