This document mainly introduces taping specifications of SOT-89/89-5, SOT-89, SOP-8, SOT-8, and TO-92 models.

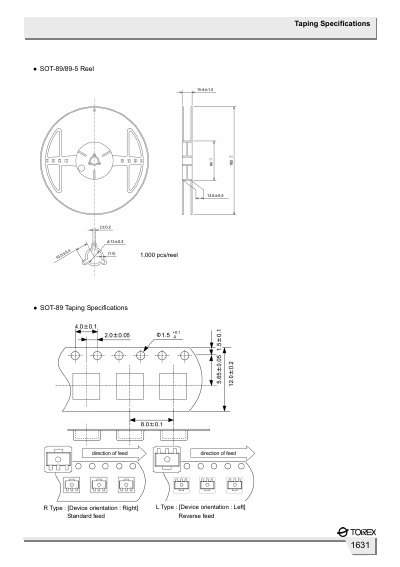

This document lists the taping dimensions, reel quantities, and packing details for several Torex semiconductor package types, including SOT-89/89-5, SOT-89, SOT-8 and TO-92. Each package section shows the standard and reverse feed orientations (right and left) and the recommended tape width and length.
The specifications also include the number of devices per reel (typically 1,000 pcs/reel) and the dimensions for fan‑fold box packaging. The data is intended for manufacturers and distributors to ensure correct handling and storage of the components.
| Reel quantity (SOT-89/89-5) | 1,000 pcs/reel |
|---|---|
| Tape length (SOT-8) | 1.55 ± 0.05 mm |
| Reel quantity (TO-92) | 500 pcs/bag |
The standard feed orientation is indicated as Right (R Type) and Left (L Type).
Each reel contains 1,000 pieces of the SOT-89/89-5 device.
A bag holds 500 TO-92 devices.
