The document describes the specifications of SOT-23/25/26 Reel products, including two models 1629 and 1630, as well as their packaging and feeding methods.

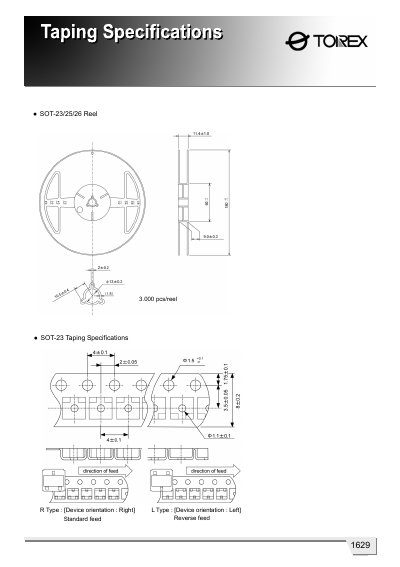

This document provides the taping specifications for reels used with SOT-23, SOT-25 and SOT-26 surface‑mount packages. It lists the number of parts per reel and the packaging orientation types.
Two orientation types are defined: R Type (right‑oriented) for standard feed and L Type (left‑oriented) for reverse feed. The specifications are given for each package size, indicating the correct reel handling for automated assembly lines.
| Pieces per reel | 3.000 pcs |
|---|---|
| R Type orientation | Right |
| L Type orientation | Left |
Each reel holds 3.000 pieces.
