This is a 1638 Taping Specifications PDF file.

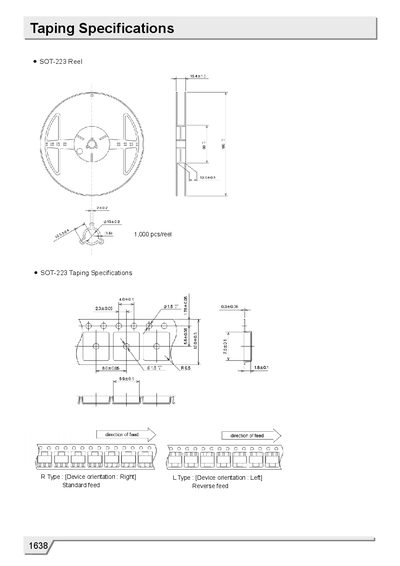

This one‑page manual lists the taping specifications for the Torex SOT‑223 reel, including dimensions, quantity per reel and orientation options. It is intended for manufacturers and packagers handling SOT‑223 devices.
Key data include the reel width, quantity per reel (1,000 pieces), and supported feed directions (standard and reverse). The document also notes device orientation markings for left‑ and right‑handed reels.
| Quantity per reel | 1,000 pcs |
|---|
Each reel holds 1,000 pieces.
Both standard feed and reverse feed are supported.
