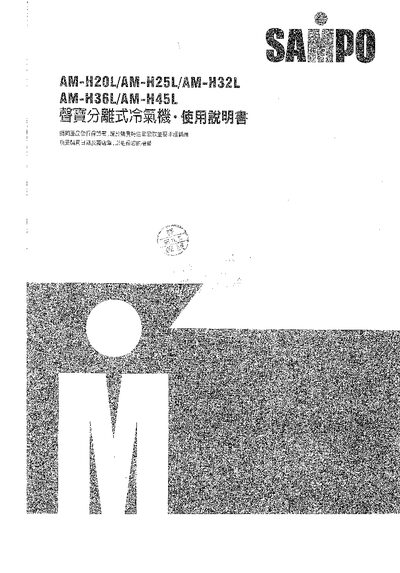

This manual covers safety regulations, pre‑use precautions, component descriptions, and step‑by‑step instructions for installing, wiring, and operating the AM‑H20L, AM‑H25L, AM‑H32L, AM‑H36L, and AM‑H45L split‑type air conditioners. It also details remote‑control usage, filter cleaning alerts, and troubleshooting tips.
A specifications table lists cooling capacity, electrical currents, power consumption, EER, power factor, rated voltage, weight, and dimensions for each model. Accessories such as the remote‑control holder, drainage connector, and installation hardware are also described. This manual is written in Chinese.
| Dimensions (W×H×D) mm | 790×270×180 |
|---|
A fuse‑less switch or fuse must be added to the power line, with the rating varying by model as shown on the back page.
The cleaning‑light illuminates after the unit has operated for 100 hours, indicating that the filter needs cleaning.
The indoor unit should be installed at a height of at least 2.5 m to prevent children from reaching it.
