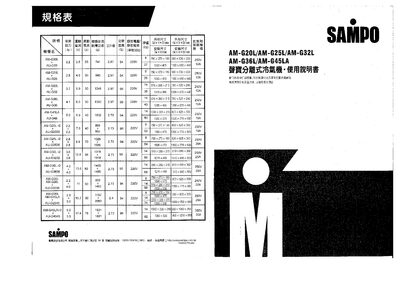

Sampo AM-G20L/AM-G25L/AM-G32L/AM-G36L/AM-G45LA Air Conditioner User Manual

About this manual

This manual provides safety guidelines, installation steps, wiring and pipe connections, and detailed operating instructions for Sampo split‑type air‑conditioner models AM‑G20L, AM‑G25L, AM‑G32L, AM‑G36L and AM‑G45LA. It includes information on front‑panel handling, remote‑control usage, filter maintenance, and troubleshooting.

A technical specification table lists cooling capacity, electrical ratings, dimensions, weight and recommended installation parameters for each model. The document also covers recommended grounding wire size, maximum pipe length, and test‑run procedures to verify proper operation after installation. This manual is written in Chinese.

What's inside

• Safety Guidelines
• Component Overview
• Front Panel Opening/Closing
• Remote Control Operation
• Installation Pipe and Electrical Wiring
• Operation Instructions (Power, Temperature, Fan Speed, Timer, Sleep Mode)
• Filter Cleaning and Maintenance
• Test Run Procedure

Specifications

Frequently asked questions

What is the recommended installation height for the indoor unit?

The indoor unit should be installed at a height of at least 2.5 m.

What size grounding wire should be used?

Use a grounding wire between 2.5 mm² and 6.0 mm² in cross‑section.

How often should the filter be cleaned?

When the cleaning indicator light stays on continuously (after about 100 hours of operation), clean the filter.

What is the maximum allowable pipe length for installation?

Do not exceed a pipe length of 7 m.
