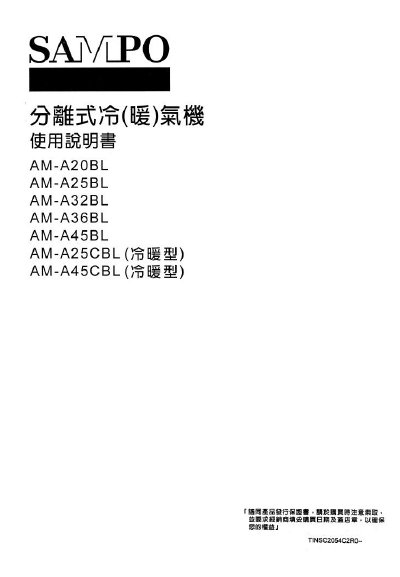

This manual provides safety instructions, wiring requirements, and step‑by‑step installation guidance for Sampo split‑type air‑conditioner units. It describes the function of each component, how to open and close the indoor unit panels, and the proper connection of power and ground cables.
The document also includes operating procedures, cleaning and maintenance tips, a specification table for each model, and troubleshooting notes such as pipe‑length limits and recommended clearances. This manual is written in Japanese.
| Indoor unit dimensions (W×H×D) | 790 mm × 270 mm × 170 mm |
|---|---|
| Outdoor unit dimensions (W×H×D) | 560 mm × 530 mm × 253 mm |
| Maximum refrigerant pipe length | 7 m |
Lift the panel using the hand‑grip indicated, then pull the panel upward as shown in the manual to access the interior.
The pipe length must not exceed 7 meters to avoid performance loss.
Install the indoor unit at least 2.5 m above the floor and keep a minimum distance of 0.5 m from walls or obstacles.
Use a power cable of at least 2.5 mm² cross‑section for the main supply and grounding.
