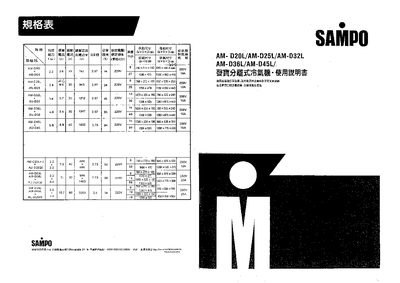

This manual covers safety regulations, proper installation, wiring requirements, and operating procedures for the Sampo AM‑D20L, AM‑D25L, AM‑D32L, AM‑D36L and AM‑D45L air‑conditioner units. It includes detailed parts descriptions, remote‑control usage, and troubleshooting tips.
Key sections describe recommended installation height, required power‑line size, voltage specifications, and how to set temperature, fan speed, and timer functions. The document also provides electrical wiring diagrams and maintenance precautions. This manual is written in Chinese.
| Indoor unit dimensions (AM‑D20L) | 790 × 270 × 180 mm |
|---|---|
| Indoor unit dimensions (AM‑D36L) | 780 × 525 × 240 mm |
Use an independent power line with a cross‑section of 2.5 mm² to 6.0 mm².
The remote uses an UNW‑4 battery; replace it when the unit is not used for a long period.
