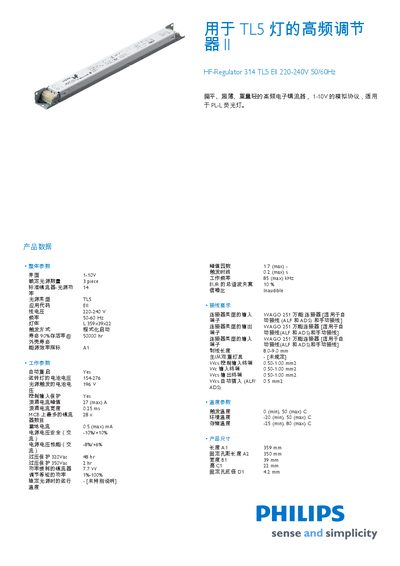

HF-Regulator 314 TL5 EII 220-240V 50/60Hz is a high frequency regulator for TL5 lamps. It has a 1-10V analog protocol and is suitable for PL-L fluorescent lamps.
The HF‑Regulator 314 TL5 is a flat, ultra‑thin, lightweight high‑frequency electronic ballast designed for TL5 fluorescent lamps. It operates on 220‑240 V AC at 50‑60 Hz and supports automatic restart and programmable start.
The document lists detailed electrical parameters, mechanical dimensions (359 mm × 39 mm × 22 mm), weight (0.340 kg), certifications (EN 55015, IEC 60929, ISO 14001, etc.), and wiring requirements, making it a comprehensive reference for installers and designers. This manual is written in Chinese.
| Lamp Compatibility | TL5 fluorescent lamps |
|---|---|
| Weight | 0.340 kg |
| Lifetime (operating hours) | 50 000 h |
| Surge Current Peak | 0.5 mA (max) |
| Over‑voltage Protection | 320 Yac / 350 Yac |
It is intended for TL5 fluorescent lamps.
