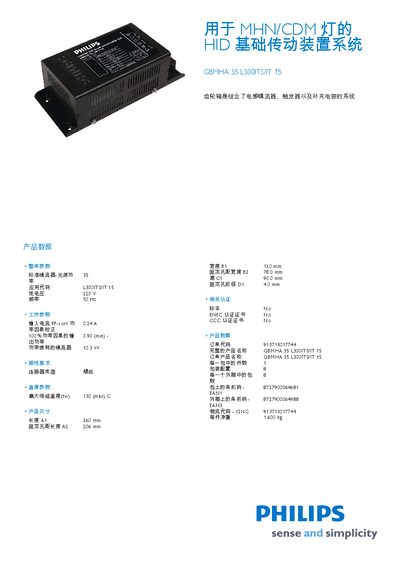

This document provides product parameters of the HID basic drive system GBMHA 35 L300ITS/IT 15 used for MHN/CDM lamps, including standard ballast power, line voltage, input current, power factor correction, etc. It also provides product dimensions, temperature parameters, related certifications, and order information.
This manual describes the technical data and installation requirements for the Philips GBMHA 35 L300ITS/IT 15 HID lamp. It includes overall parameters, operating settings, wiring connections, temperature limits, and packaging information.
Key specifications such as rated voltage, frequency, power consumption, power factor, maximum temperature, and physical dimensions are listed, along with the part numbers and bar‑code identifiers for ordering and logistics. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Minimum Power Factor | 0.90 |
| Maximum Operating Temperature | 130 °C |
| Dimensions (L × W) | 260 mm × 206 mm |
The lamp is rated at 220 V and 50 Hz.
The minimum power factor is 0.90.
The lamp measures 260 mm by 206 mm.
