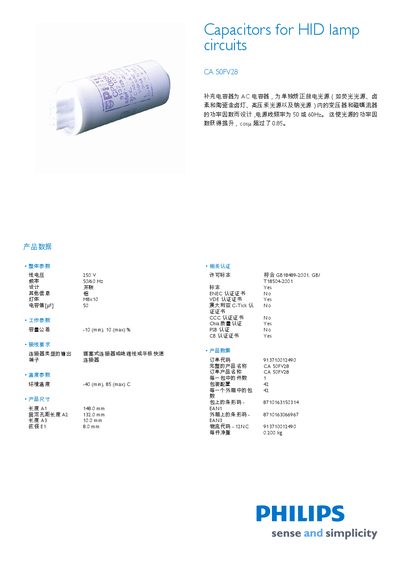

The CA 50FV28 supplementary capacitor is an AC capacitor designed for individual correction of the power factor of transformers and magnetic ballasts in discharge lamps (such as fluorescent lamps, halogen and ceramic metal halide lamps, high pressure mercury lamps, and sodium lamps), with supply line frequency of 50 or 60Hz. This results in an improvement of the power factor of the light source, with cosμ exceeding 0.85.
The CA 50FV28 is a capacitor designed for HID lamp circuits, supporting 250 V operation at 50/60 Hz. It is intended for use with various light sources such as metal‑halide, ceramic, and fluorescent lamps.
Key specifications include rated voltage, tolerance, temperature range, physical dimensions, and compliance with international standards. Packaging information and bar‑code identifiers are also listed. This manual is written in Chinese.
| Rated Frequency | 50/60 Hz |
|---|---|
| Capacitance Tolerance | -10 % (min) to +10 % (max) |
| Operating Temperature Range | -40 °C to 85 °C |
| Length (A1) | 148.0 mm |
| Width (A2) | 132.0 mm |
| Compliance Standards | GB18489-2001, GB/T18504-2001, ENEC, VDE, CCC, CB |
| Units per Package | 42 |
| Net Weight per Package | 0.200 kg |
It can operate from –40 °C to +85 °C.
The dimensions are 148.0 mm × 132.0 mm × 10.0 mm with a diameter of 8.0 mm.
It complies with GB18489-2001, GB/T18504-2001, ENEC, VDE, CCC and CB standards.
