HF-Regulator 236 TL-D EII 220-240V 50/60Hz is a high frequency regulator for TL-D lamps. It is a flat, ultra-thin, lightweight high frequency electronic ballast with an analog protocol of 1-10V, suitable for PL-L fluorescent lamps.
The HF‑R 236 is a high‑frequency electronic ballast designed for TL‑D fluorescent lamps. It operates on 220‑240 V AC at 50/60 Hz and supports a 1‑10 V analog control protocol.

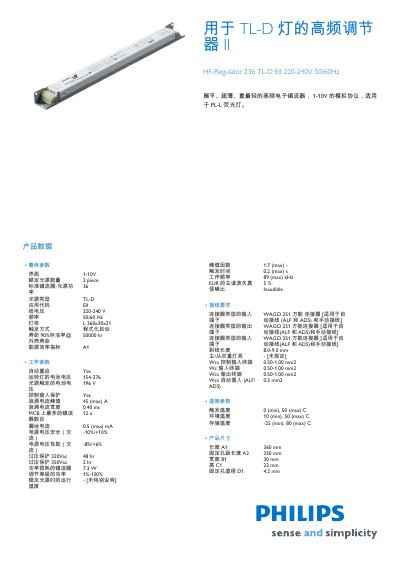

The manual lists product data, electrical parameters, wiring requirements, temperature limits, physical dimensions, and certification details. It also includes ordering codes, packaging information, and safety standards applicable to the regulator. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Supported lamp type | TL‑D |
| Number of lamps | 2 |
| Power loss | 7.3 W |
| Surge current peak | 45 A |
| Over‑voltage protection (48 h) | 320 Vac |
| Trigger temperature range | 0‑50 °C |
| Operating temperature range | 10‑50 °C |
It accepts an AC line voltage of 220‑240 V.
The regulator is rated for 2 TL‑D lamps.
It can handle a surge current peak of 45 A.
The unit provides over‑voltage protection up to 320 Vac for 48 hours.
