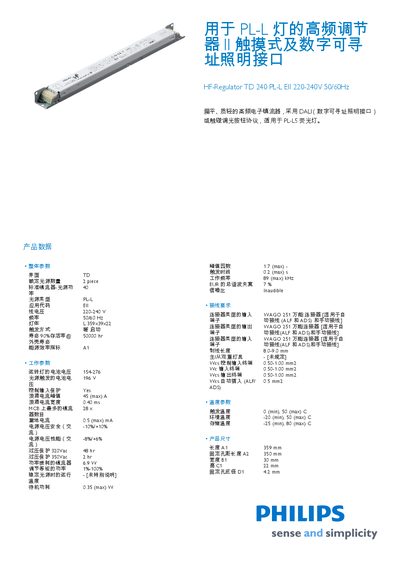

This document describes the features and characteristics of the HF-Regulator TD 240 PL-L EII 220-240V 50/60Hz, a high-frequency regulator for PL-L lamps with touch and digital addressable lighting interface II.
The HF‑Regulator TD 240 PL‑L is a high‑frequency electronic ballast designed for PL‑L fluorescent lamps. It operates from a 220‑240 V AC supply at 50/60 Hz and supports two lamps per unit.
The manual lists key parameters such as a peak factor of 17, trigger time up to 0.2 s, and a working frequency up to 89 kHz. It also details wiring requirements using WAGO 251 universal connectors, dimensional data (359 mm × 30 mm × 22 mm), temperature limits, and compliance with standards like EN 55015, IEC 60929, and ISO 14001. This manual is written in Chinese.
| Input voltage | 220‑240 V AC |
|---|---|
| Frequency | 50/60 Hz |
| Number of lamps | 2 |
| Lamp type | PL‑L fluorescent lamp |
| Peak factor (max) | 17 |
| Trigger time (max) | 0.2 s |
| Working frequency (max) | 89 kHz |
| Lifetime (90% survival) | 50 000 h |
| Surge current (max) | 0.5 mA |
It requires an AC line voltage of 220‑240 V.
It is intended for PL‑L fluorescent lamps.
WAGO 251 universal connectors are recommended for both input and output connections.
