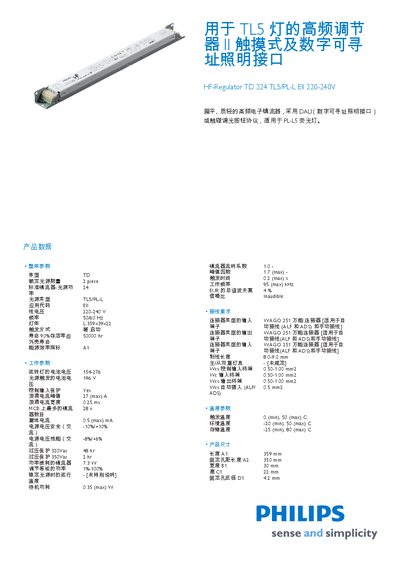

This document describes the high-frequency regulator II for TL5 lamps, which uses DALI or touch dimming button protocol and is suitable for PL-L5 fluorescent lamps. It has the characteristics of being flat, lightweight, long lifespan, high energy efficiency, and overvoltage protection.
The Philips HF‑Regulator TD 224 TL5/PL-L is a high‑frequency electronic ballast designed for PL‑L5 fluorescent lamps. It supports DALI and touch‑dim control protocols and provides stable lighting performance.
Key parameters include a 220‑240 V input voltage, 95 kHz maximum operating frequency, 0.2 s maximum trigger time, and a compact size of 359 × 30 × 22 mm. The unit complies with multiple safety and EMC standards such as EN 55015, EN 55022, IEC 61347.2.3, IEC 60929, ISO 14001 and IEC 61000‑3‑2. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Operating frequency (max) | 95 kHz |
| Trigger time (max) | 0.2 s |
| Net weight per unit | 0.295 kg |
| Lifetime | 50 000 h |
| Operating temperature range | 0 °C – 50 °C |
| Storage temperature range | -25 °C – 80 °C |
The ballast operates on a line voltage of 220‑240 V.
The device can operate between 0 °C and 50 °C.
