EB-Primalume electronic ballast for PLT/C lamp, stable, energy-saving, high-frequency, suitable for TL-D fluorescent lamp.

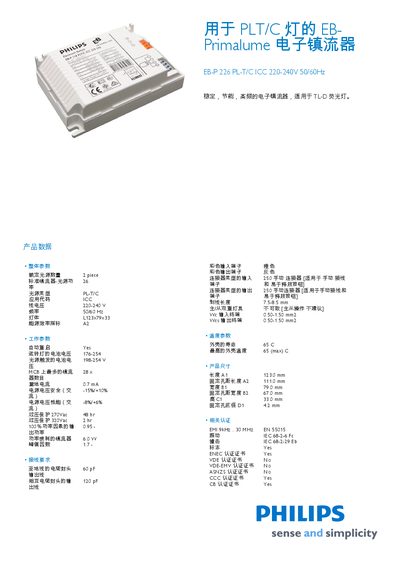

This manual lists the overall parameters of the EB-P 226 PL‑T/C ICC lighting unit, including rated voltage, frequency, power consumption, and power factor. It also describes the working parameters, wiring requirements, temperature limits, and EMI performance.
Additional sections cover the physical dimensions, weight, certification marks (EN 55015, IEC 68‑2‑6 Fc, IEC 68‑2‑29 Eb), and packaging information such as barcode numbers and quantity per package. This manual is written in Chinese.
| Rated Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Dimensions (L×W×H) | 123 mm × 79 mm × 33 mm |
| Weight | 0.100 kg |
| EMI Range | 9 kHz – 30 MHz |
| Certifications | EN 55015, IEC 68‑2‑6 Fc, IEC 68‑2‑29 Eb |
The unit is rated for 220‑240 V.
The dimensions are 123 mm × 79 mm × 33 mm.
It is certified to EN 55015, IEC 68‑2‑6 Fc and IEC 68‑2‑29 Eb.
