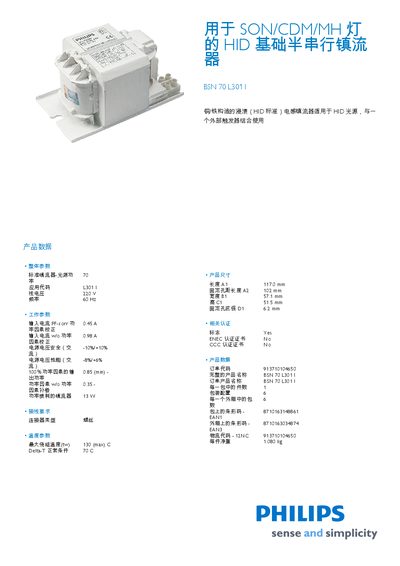

The BSN 70 L301 I is a copper/iron construction impregnated (HID standard) inductive choke ballast suitable for HID light sources, in combination with an external trigger
This manual provides the technical specifications, safety information and installation guidelines for the Philips BSN70L3011 high‑intensity discharge (HID) lamp. It includes overall parameters such as voltage, frequency, current and power factor, as well as temperature and wiring requirements.
The document also lists the physical dimensions of the lamp, packaging configuration, bar‑code identifiers and regulatory markings. All data are presented in Chinese with reference to Philips Electronics standards. This manual is written in Chinese.
| Maximum Temperature | 130 °C (max) |
|---|---|
| Dimension A1 | 117.0 mm |
| Dimension A2 | 102 mm |
| Dimension B1 | 57.1 mm |
| Dimension C1 | 51.5 mm |
| Dimension D1 | 6.2 mm |
The lamp is rated at 220 V and 60 Hz.
The dimensions are A1 117.0 mm, A2 102 mm, B1 57.1 mm, C1 51.5 mm and D1 6.2 mm.
The maximum operating temperature is 130 °C.
