The ESC 02, Step Dimming Controller for SON Lamps is an electronic controller for step dimming lighting systems. The non-peak wattage can be dimmed to reduce light output, saving energy costs.

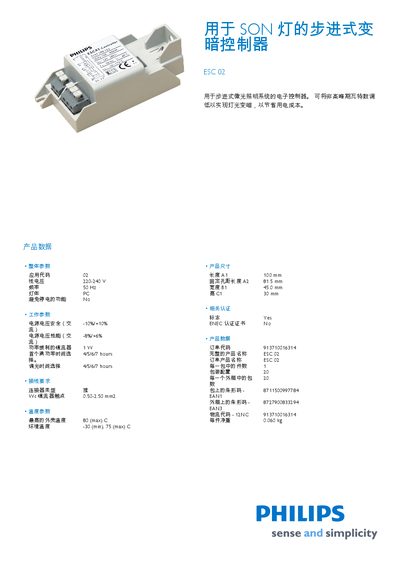

This manual describes the overall parameters of the Philips ESC 02 lighting controller, including electrical ratings, power consumption, and lifetime. It also lists temperature limits and current specifications.
Additional sections cover wiring requirements, packaging details, product identification codes, and regulatory information. The document includes dimensional data and weight for installation planning. This manual is written in Chinese.
| Operating Voltage | 220-240 V, 50 Hz |
|---|---|
| Rated Lifetime | 57677 hours |
| Current Rating | 0.50‑2.50 mm² |
| Operating Temperature Range | -30 °C (min) to 75 °C (max) |
| Weight | 0.060 kg |
The ESC 02 operates at 220‑240 V, 50 Hz.
The rated lifetime is 57 677 hours.
It can operate from –30 °C (minimum) up to 75 °C (maximum).
