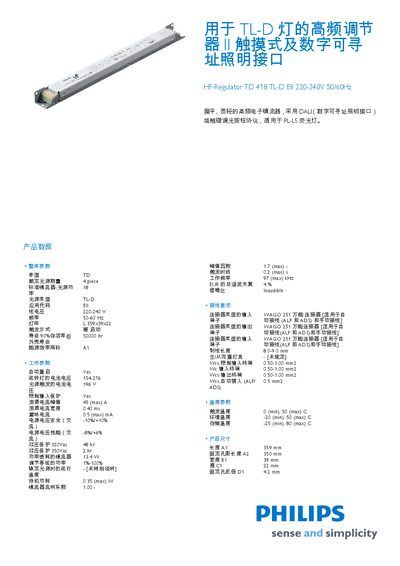

The HF-Regulator TD 418 TL-D EII is a flat and lightweight high-frequency electronic ballast, which uses DALI or touch dimming button protocol and is suitable for PL-L5 fluorescent lamps.
The Philips TL‑D high‑frequency regulator is a lightweight electronic ballast that supports DALI (Digital Addressable Lighting Interface) or touch‑dim button protocols, designed for PL‑L5 fluorescent lamps. It offers features such as automatic restart, surge protection, and over‑voltage protection.
Technical parameters include an input voltage of 220‑240 V, 50‑60 Hz frequency, dimensions of 359 mm × 39 mm × 22 mm, a maximum power loss of 0.35 W, and a lamp lifetime of 50 000 h. The device complies with multiple safety and EMC standards and uses WAGO 251 universal connectors for wiring. This manual is written in Chinese.
| Input voltage | 220‑240 V AC |
|---|---|
| Frequency | 50‑60 Hz |
| Maximum power loss | 0.35 W |
| Surge current peak | 45 A (max) |
| Over‑voltage protection | 320 Yac / 350 Yac |
| Trigger time | 0.2 s (max) |
| Working frequency | 97 kHz (max) |
| Lamp lifetime | 50 000 h |
| Trigger temperature range | 0 °C – 50 °C |
It operates on 220‑240 V AC.
The maximum surge current is 45 A.
