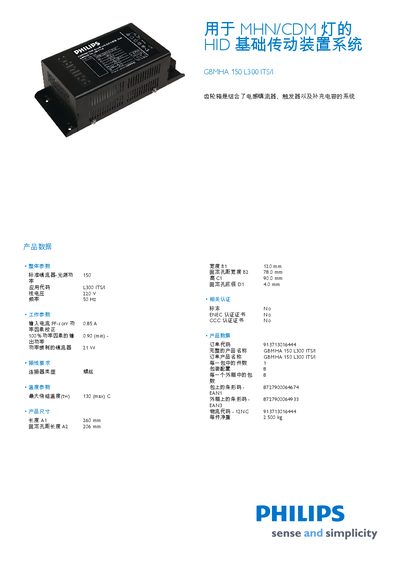

The GBMHA 150 L300 ITS/I gear box is a combination of an inductor ballast, a trigger and a supplementary capacitor for use with MHN/CDM lamps.
The manual describes the technical parameters, wiring connections, temperature limits, and physical dimensions of the Philips GBMHA 150 L300 ITS HID lamp ballast. It also lists packaging configuration and bar‑code information for logistics.
Key specifications include a 220 V, 50 Hz input, 0.865 A current draw, 21 W power consumption, a maximum operating temperature of 130 °C, and overall dimensions of 260 mm × 206 mm. This manual is written in Chinese.
| Input Voltage | 220 V / 50 Hz |
|---|---|
| Maximum Temperature | 130 °C (max) |
| Dimensions (L × W) | 260 mm × 206 mm |
| Hole Spacing B1 | 120 mm |
The ballast requires a 220 V supply at 50 Hz.
The maximum temperature is 130 °C.
The unit measures 260 mm by 206 mm.
