MASTER TL-D Xtreme 36W/865 1SL is a fluorescent lamp produced by Philips. Its features are a color temperature of 6500K, a color rendering index of 85Ra8, a luminous flux of 3150 Lm, a rated power of 36 W, dimmable, and a mercury (Hg) content of 3.0 mg.

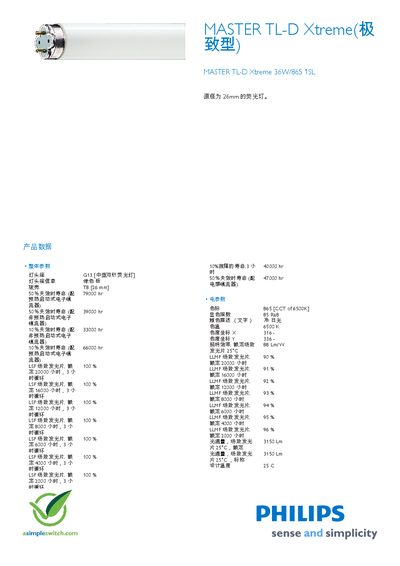

The document provides product data for the Philips MASTER TL-D Xtreme fluorescent lamp, covering electrical parameters, mechanical dimensions and environmental information. It lists key performance figures such as rated power, lamp diameter, luminous flux and colour temperature.
Additional sections present lifetime ratings for different ballast types and detailed luminance data, helping users select the appropriate lamp for their lighting applications. This manual is written in Chinese.
| Rated power | 36W |
|---|---|
| Lamp diameter | 28 mm |
| Overall length | 1213.6 mm |
| Dimmable | Yes |
| Luminous flux | 3150 Lm |
| Rated lifetime (pre‑heat ballast) | 20000 hours |
The lamp is rated at 36 W.
The maximum lamp diameter is 28 mm.
Yes, the lamp is dimmable.
