The MASTER TL-D Secura 36W/840 1SL is a low-pressure mercury discharge lamp from Philips. It has a light output of 3200 Lm, a color temperature of 4000 K, and an rated power of 36 W. It is suitable for open luminaires.

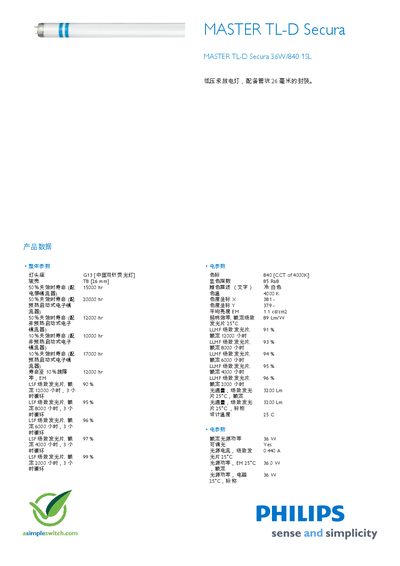

This manual describes the technical data and operating parameters of the Philips MASTER TL-D Secura fluorescent lamp, including its G13 base, T8 (26 mm) tube, 4000 K color temperature, and 85 Ra color rendering index. It also lists performance figures such as 36 W power consumption, 3200 lm luminous flux, and 89 lm/W efficiency.
Safety instructions, environmental requirements, packaging details, and dimensional data are included to help installers and users ensure proper handling and compliance. The document also notes that the lamp is dimmable and provides the recommended operating temperature of 25 °C. This manual is written in Chinese.
| Lamp base | G13 |
|---|---|
| Tube type | T8 (26 mm) |
| Color temperature | 4000 K |
| Color rendering index | 85 Ra |
| Rated power | 36 W |
| Luminous flux | 3200 lm |
| Rated life (50% failure) | 15000 h |
| Efficiency | 89 lm/W |
| Dimmable | Yes |
| Operating temperature | 25 °C |
It uses a G13 base.
The lamp is rated at 36 W.
Yes, the lamp supports adjustable dimming.
The lamp has a color temperature of 4000 K.
