HF-Regulator TD 424 TL5/PL-L EII 220-240V is a flat, lightweight high frequency electronic ballast that uses DALI (Digital Addressable Lighting Interface) or touch dimming button protocol for PL-L5 fluorescent lamps.

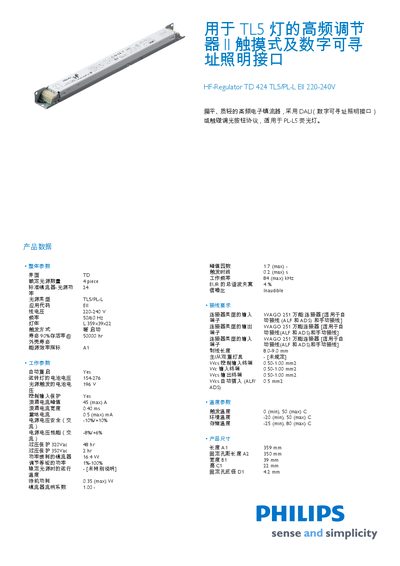

This manual provides the technical data and operating parameters for the Philips TL5 high‑frequency regulator (model HF‑RTD 424 TLS/PL‑L). It includes information on line voltage, frequency, dimensions, power loss, and temperature limits, as well as wiring requirements using WAGO connectors.
The document also lists relevant certifications (EMC, safety, ISO) and product codes, and gives guidance on installation, automatic restart, and protection features such as surge current and over‑voltage protection. This manual is written in Chinese.
| Line Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Operating Frequency | 84 kHz (max) |
| Power Loss | 0.35 W (max) |
| Standby Power | 0.5 W (max) |
| Surge Current Peak | 45 A (max) |
| Over‑voltage Protection | 320 V ac / 350 V ac |
| Trigger Time | 0.2 s (max) |
| Temperature Range (Operating) | 0 °C (min) – 50 °C (max) |
It operates on a line voltage of 220‑240 V AC.
The regulator can tolerate a surge current peak of up to 45 A.
WAGO 251 universal connectors are recommended for both automatic (ALF/ADS) and manual wiring.
