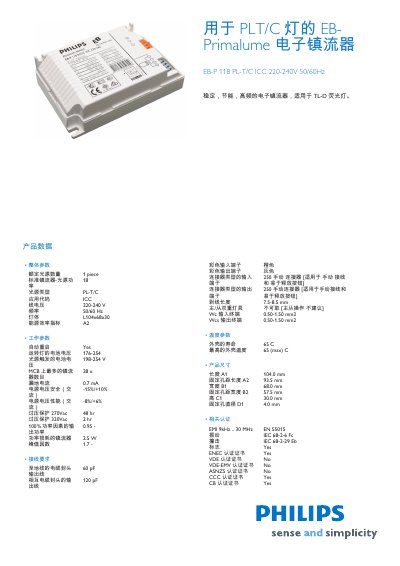

EB-Primalume is a high frequency electronic ballast suitable for PLT/C lamps, which is stable, energy-saving and can be used for TL-D fluorescent lamps. The electronic ballast has the function of automatic restart, and the safe range of power supply voltage is -15% to +10%, and the performance range of power supply voltage is -8% to +6%. It also has overvoltage protection function and can output power factor of 0.95. The size of the electronic ballast is 104x68x30mm and the weight is 0.079kg.
The EB‑Primalume electronic ballast is designed for PL‑T/C lamps and TL‑D fluorescent tubes, offering high‑frequency operation, automatic restart, and energy‑efficient performance. It operates from a 220‑240 V AC supply at 50/60 Hz and supports a single lamp with a rated power of 18 W.
Key parameters include a power factor of 0.95, power loss of 2.5 W, and dimensions of 104 mm × 68 mm × 30 mm. The unit complies with EMI, EN 55015, IEC vibration and shock tests, and holds ENEC, CCC and CB certifications. This manual is written in Chinese.
| Rated Lamp Power | 18 W |
|---|---|
| Input Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Power Factor | 0.95 |
| Power Loss | 2.5 W |
| Length | 104.0 mm |
| Width | 68.0 mm |
| Height | 30.0 mm |
The ballast operates from 220 V to 240 V AC.
The power factor is 0.95.
