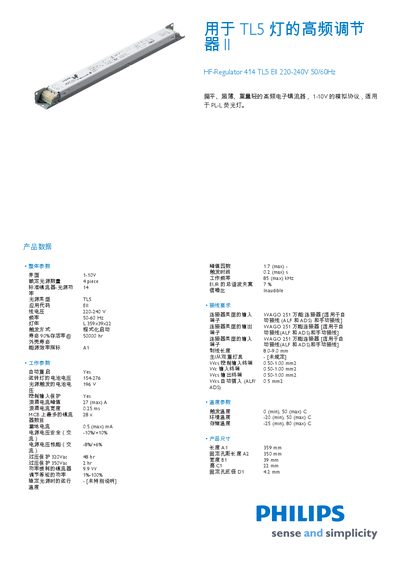

This document describes the features and characteristics of the HF-Regulator 414 TL5 EII 220-240V 50/60Hz. The regulator is a flat, slim, lightweight high-frequency electronic ballast suitable for TL5 and PL-L fluorescent lamps. It has a 1-10V analog protocol and features such as automatic restart, control input protection, and overvoltage protection.
This document presents the product data for the Philips HF‑R414 TL5 high‑frequency regulator, designed for use with TL5 fluorescent lamps. It includes electrical parameters, dimensions, and safety features.
Key specifications such as input voltage, frequency, lamp life, surge protection, and temperature ranges are listed, along with compliance to international standards and certifications. This manual is written in Chinese.
| Input voltage | 220‑240 V AC |
|---|---|
| Frequency | 50‑60 Hz |
| Number of lamps supported | 4 pieces |
| Lamp life | 50 000 h |
| Surge current peak | 27 A (max) |
| Operating temperature range | -20 °C to 50 °C |
The regulator operates on 220‑240 V AC.
It supports a lamp life of 50 000 hours.
It can handle a surge current peak of up to 27 A for 0.25 ms.
