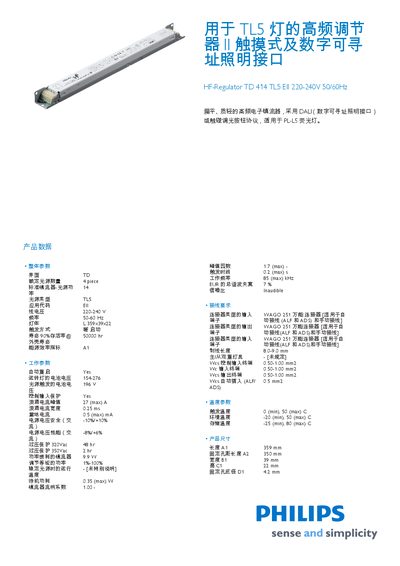

HF-Regulator TD 414 TL5 EII 220-240V 50/60Hz is a flat, lightweight high-frequency electronic ballast that uses DALI (Digital Addressable Lighting Interface) or touch dimming button protocol for PL-L5 fluorescent lamps.
This manual provides the technical data and overall parameters for the Philips HF‑RTD 414 TL5 EL high‑frequency regulator, including input voltage, frequency, lamp count, and lifetime specifications. It also lists wiring requirements, connector types, and physical dimensions of the unit.
The document includes certification information, safety and performance standards, and environmental ratings such as temperature ranges and humidity limits. Additional sections cover surge current protection, harmonic current limits, and EMC compliance. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Frequency | 50‑60 Hz |
| Maximum lamp count | 4 pieces |
| Surge current peak | 27 A (max) |
| Trigger time | 0.2 s (max) |
| Operating frequency | 85 kHz (max) |
| Power loss of ballast | 0.35 W (max) |
| Lifetime (90% survival) | 50 000 h |
| Environmental temperature range | -20 °C to 50 °C |
The regulator operates on an input voltage of 220‑240 V.
It can handle a surge current peak of up to 27 A.
WAGO 251 universal connectors are recommended for both input and output wiring.
