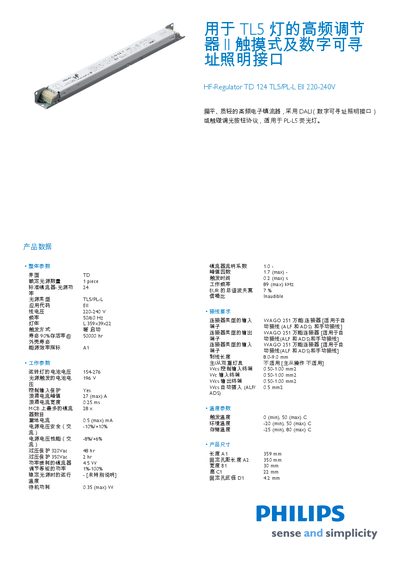

HF-Regulator TD 124 TL5/PL-L EII 220-240V is a high-frequency regulator for TL5 lamps, supporting DALI or touch dimming button protocol, suitable for PL-L5 fluorescent lamps.
The HF‑RTD 124 TLS/PL‑L EII is a high‑frequency electronic ballast designed for TL5 fluorescent lamps. It supports digital addressable lighting interface (DALI) and touch‑dim control, offering a compact and lightweight solution for lighting installations.
The document lists electrical parameters, temperature limits, physical dimensions, and compliance with international safety and electromagnetic compatibility standards. It also provides wiring recommendations and certification references for the product. This manual is written in Chinese.
| Line voltage | 220‑240 V |
|---|---|
| Operating frequency (max) | 89 kHz |
| Trigger time (max) | 0.2 s |
| Length | 359 mm |
| Width | 30 mm |
| Height | 22 mm |
| Net weight | 0.260 kg |
| Trigger temperature range | 0 °C to 50 °C |
| Ambient temperature range | -20 °C to 50 °C |
| Storage temperature range | -25 °C to 80 °C |
The regulator operates on a line voltage of 220‑240 V.
It can operate up to a maximum frequency of 89 kHz.
