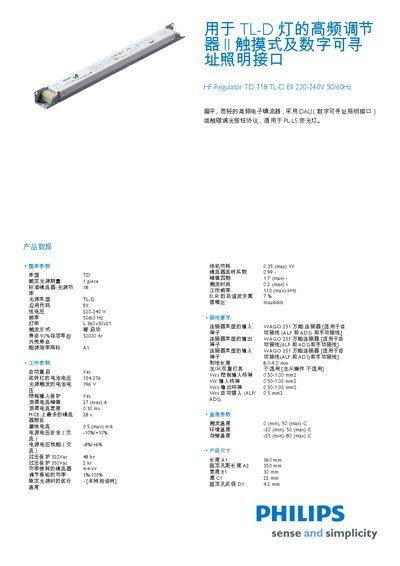

HF-Regulator TD 118 TL-D EII 220-240V 50/60Hz is a flat, lightweight high frequency electronic ballast with DALI (Digital Addressable Lighting Interface) or touch dimming button protocol, suitable for PL-L5 fluorescent lamps.
The HF-RTD 118 TL‑D is a high‑frequency electronic ballast that supports DALI (digital addressable lighting interface) or touch‑dim button protocols and is intended for use with PL‑L5 fluorescent lamps. It offers automatic restart, low standby power, and a compact design suitable for lighting installations.
Key data include a line voltage of 220‑240 V, frequency range 50‑60 Hz, standby power consumption of 0.35 W (max), peak factor up to 17, trigger time 0.2 s (max), and an operating frequency of 110 kHz (max). Physical dimensions are 360 mm × 30 mm × 22 mm. This manual is written in Chinese.
| Line voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Standby power consumption | 0.35 W (max) |
| Peak factor | 17 (max) |
| Trigger time | 0.2 s (max) |
| Operating frequency | 110 kHz (max) |
| Length | 360 mm |
| Width | 30 mm |
| Height | 22 mm |
The standby power consumption is 0.35 W maximum.
The regulator measures 360 mm in length, 30 mm in width, and 22 mm in height.
The maximum trigger time is 0.2 seconds.
