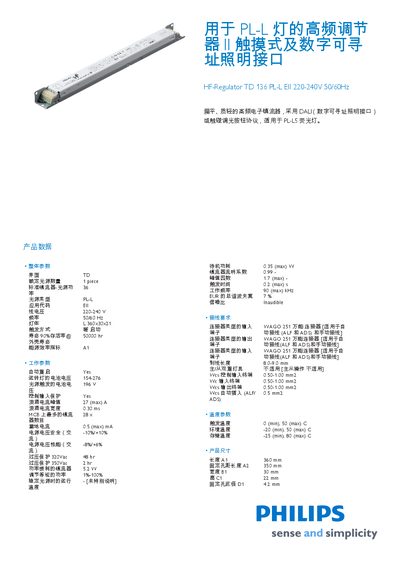

This document describes the features and characteristics of the high-frequency regulator II touch and digital addressable lighting interface HF-Regulator TD 136 PL-L EII 220-240V 50/60Hz for PL-L lamps.
This document presents the product data for the Philips HF‑RTD136 PL‑L high‑frequency regulator, which is compatible with PL‑L fluorescent lamps and supports DALI or touch‑dim control protocols. It lists the electrical ratings, operating parameters, and physical dimensions of the unit.
Technical information includes standby power consumption, lamp lifetime, trigger time, temperature ranges, and a full set of compliance certifications such as EN 55015, IEC 61347‑2‑3, ISO 14001 and others. Packaging and ordering details are also provided. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Standby Power Consumption | 0.35 W (max) |
| Lamp Lifetime | 50000 hr |
| Trigger Time | 0.2 s (max) |
| Working Frequency | 90 kHz (max) |
| Maximum Input Current | 27 A (max) |
| Maximum Surge Current | 0.5 mA (max) |
| Trigger Temperature Range | 0 °C to 50 °C |
| Ambient Temperature Range | -20 °C to 50 °C |
| Storage Temperature Range | -25 °C to 80 °C |
The standby power consumption is 0.35 W maximum.
