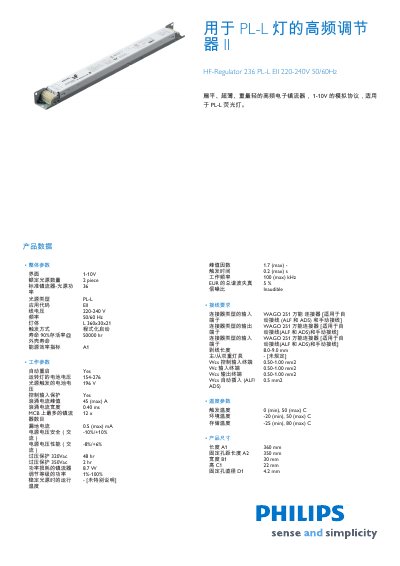

HF-Regulator 236 PL-L EII 220-240V 50/60Hz is a high frequency regulator II for PL-L lamps. It is a flat, ultra-thin and lightweight high frequency electronic ballast with a 1-10V analog protocol, suitable for PL-L fluorescent lamps.
The Philips HF‑R 236 is a compact, lightweight high‑frequency electronic ballast designed for PL‑L fluorescent lamps. It supports a 1‑10 V analog control protocol and operates on 220‑240 V AC at 50/60 Hz. Key features include programmable start, automatic restart, over‑voltage protection, and a lifetime of up to 50 000 hours.
The regulator uses WAGO 251 universal connectors for both input and output wiring and can drive up to 12 ballasts on a single MCB. It meets multiple international certifications such as EMI (EN 55015/EN 55022), IEC 61347‑2‑3 safety, IEC 60929 performance, and ISO 9000 quality standards. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Power Loss | 8.7 W |
| Shell Lifetime | 50 000 hr |
| Connector Type | WAGO 251 universal connector |
The maximum surge current is 45 A.
Up to 12 ballasts can be connected to a single MCB.
